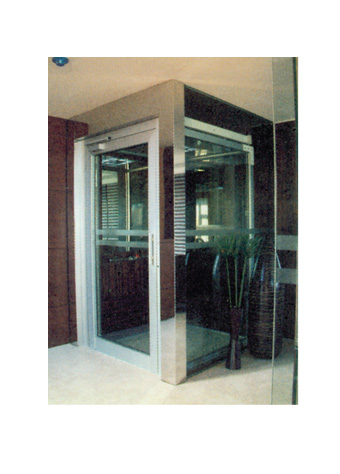

Home Lift

• Type : IH01 - IH02 - IH03

  Basic Parametre

  Standard: Q/ 320500DndT001- 2003

  Driving Way: Traction or Hydraulic

  Normal Load : 250KG, 320KG, 400KG

  Capacity 3 - 5 persons

  Max stops: 4 floors

  Max Travel :12m

  Min headroom height: 2700mm

  Normal pit depth: 140mm

  Main power supply : single phase 220v (50 / 60 HZ)

  Speed :0.1m/s - 0.2m/s

  Power :1.1 - 2.2 kw

  Landing door: single entrance, opposite entrance, and right angle entrance

  Gear radio: 1:1, 2:1

  Shaft: construction shaft, frame shaft

  Installation scope: indoor and outdoor




  Standrad Function

  Light screen Protection

  Emergency go down

  Hand operator go down in emergency

  Emergency light

  Car light turn off automatically
